Stratasys Neo 800 3D Printer

Large-format stereolithography printer

Get a Quote

Large-format stereolithography printer

Build large prototypes, rapid tooling and master patterns with a world-class industrial large-format stereolithography system. The Neo®800 builds high-quality parts with superior surface quality, accuracy and detail.

This large format 3D Printing system allows you to produce large parts without the need for sectioning or build multiple parts in one build saving time and costs.

Performance: Exceptional side wall part quality with outstanding scanning resolution which reduces finishing time by up to 50%

Usability: Maintenance and labor requirements low. Remote diagnostics or convenient on-site support from our exceptional service team.

Key Uses: Wind tunnel testing, rapid tooling, jigs and fixtures, vacuum form tooling, composite tooling and many more.

This Stratasys SL system produces highly accurate parts with unparalleled industry quality. Optimising the machine design and utilising the latest cutting-edge technology available for laser and scanners, their beam delivery system produces exceptional layer-to-layer alignment repeatability. The printed parts are dimensionally accurate, with exceptional sidewalls and crisp feature resolution.

Laser: 2 Watt

Layer Resolution: 50 to 200 μm

Machine Dimensions: 53.2 × 64.2 × 90.6 in. (1350 × 1630 × 2300 mm)

Machine Weight: 1764 lb (800 kg)

Minimum Feature Size: 0.008 in. (0.2 mm) in X & Y† / 0.016 in. (0.4mm) in Z†

Build Modes: HD & SD

Accuracy: Dimension <3.94 in. ±0.004 in.; Dimension >3.94 in. ±0.15%† Dimension <100 mm ±0.1 mm; Dimension >100 mm ±0.15%†

Build Capacity: 31.50 × 31.50 × 23.62 in. (800 × 800 × 600 mm)

VAT Fill Capacity: 147 US gal (1389 lb‡ ) [555 ltr (630 kg‡ )]

Software: Titanium Assistant (optional)



  • Somos® EvoLVe 128

    Very tough and durable with great surface finish.

    Read More

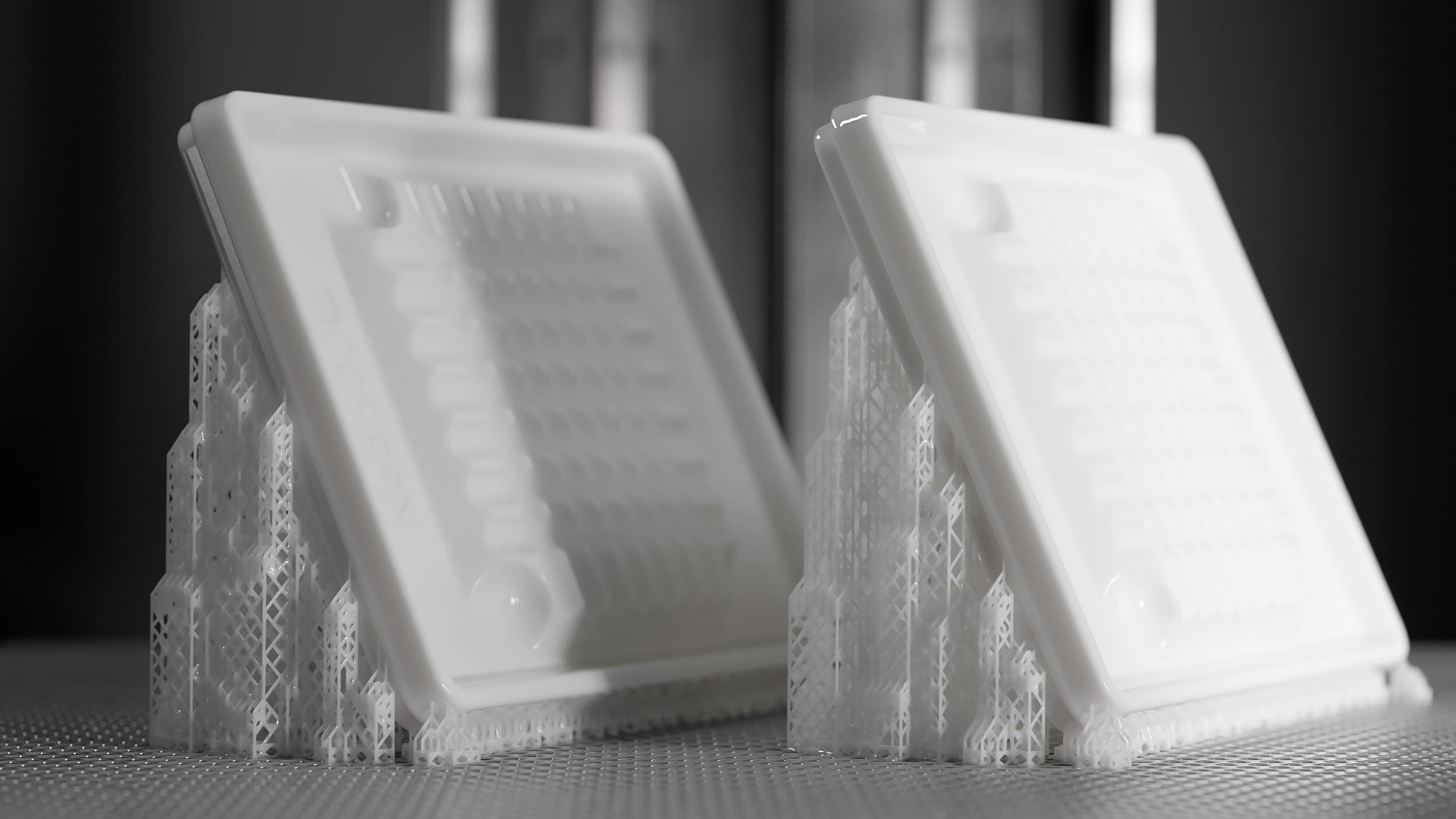

  • Somos® PerFORM

    Very high heat and stiffness, ceramic.

    Read More

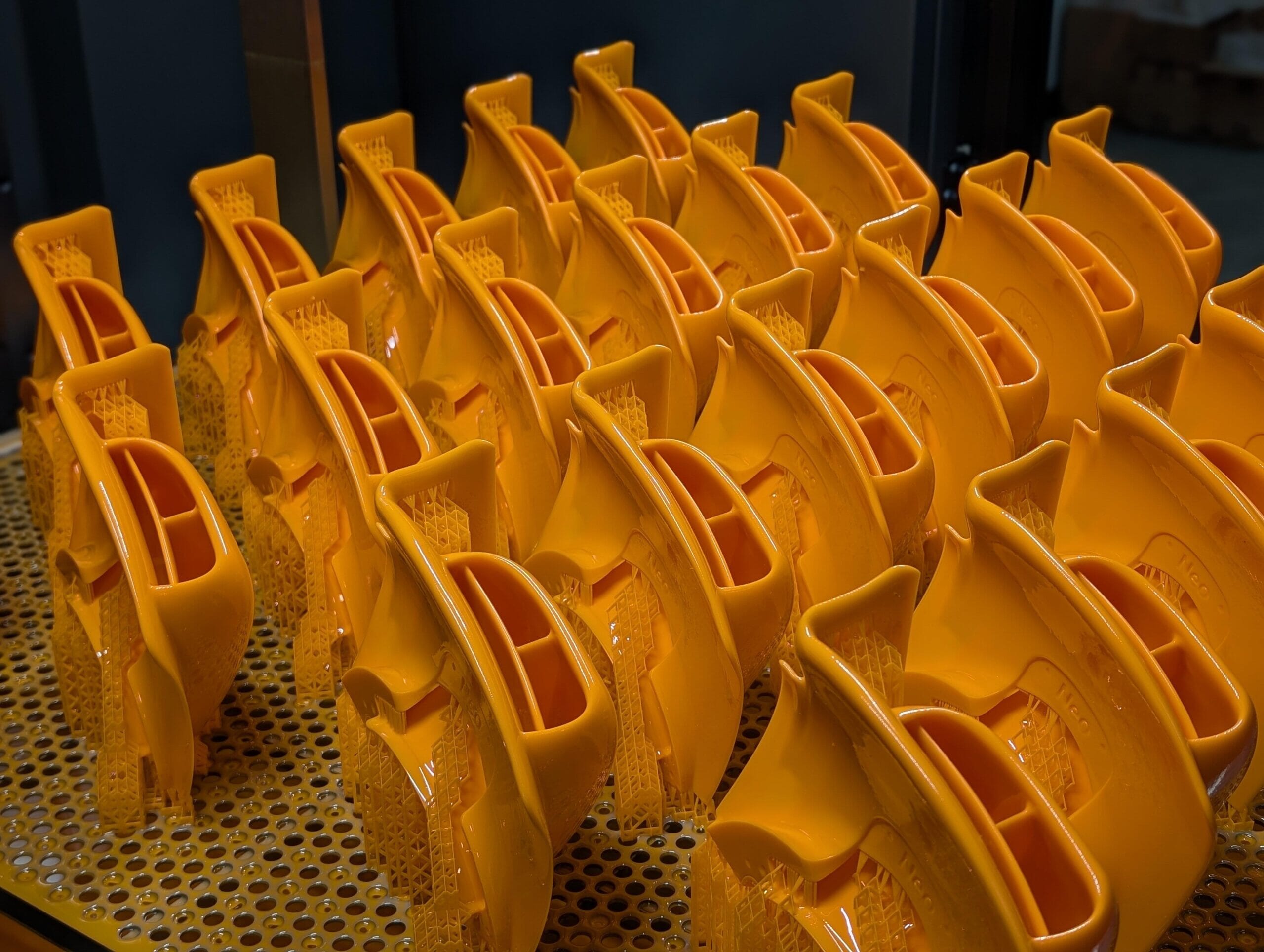

  • Somos® PerFORM Reflect

    Very high heat and stiffness, ceramic, developed for PIV.

    Read More
  • Somos® Taurus

    High heat and toughness, thermoplastic-like performance.

    Read More
  • Somos® WaterClear Ultra 10122

    Versatile, easy to use, exceptional clarity.

    Read More
  • Somos® WaterShed Black

    Multipurpose material saving time and resources

    Read More
  • Somos® WaterShed XC 11122

    Versatile, good all-round polymer, very easy to use.

    Read More

Currently there are no case studies assigned. You can view our full range of case studies here.

Leasing 3D Printers

Tri-Tech 3D provide direct rental contracts on our full range of 3D printers, which can include post processing equipment and extended warranty, making your investment into 3D printing both affordable and help plan your annual expenditure.

Funding in the most part, is provided by our sister company Stanford Marsh Finance(a division of the Stanford Marsh Group) or via our numerous strategic finance partners/brokers.

Rates are frequently checked to ensure competitiveness in the market place and you will find our terms highly attractive.  With options such as fixed term contracts, step rentals which make payments lower in the earlier years allowing time to grow the use from your new device.  Or deferred payment, enabling you to benefit from the technology ahead of when you start paying.

Why lease 3D Printers?..

Not only can leasing be financially beneficial to companies, but it can also give you the ability to remain ahead and current with technology. It also means your entry point to utilisation of a professional 3D printer is far more affordable than you may think – a professional 3D printer from as little as £299 per month, (including a wash system and 12-months support).

Furthermore, if like many companies today you are outsourcing 3D printing via a 3D Print Bureau, you are already spending an amount each month that when converted to a lease, could represents an in-house option at no extra cost (savings possibly).  Either talk to one of our team, or send us details of your average spend and we can help provide an ROI report.

In addition to our excellent rates, as an end user dealing directly with one vendor for finance, equipment and after sales care, your rental agreement will provide you with a future flexible upgrade path. We’ve enabled companies to acquire new technology prior to the completion of the minimum rental period, without the usual high termination figure charged by outside finance agencies.

All finance is subject to approval and none of the solutions detailed above are guaranteed to suit all scenarios. What we can promise however, is we will do our utmost to make the finance of your 3D Print solution as affordable and easy as possible.

If you are interested in further information, please contact us.

Stratasys Neo 800 3D Printer Brochure Downloads
