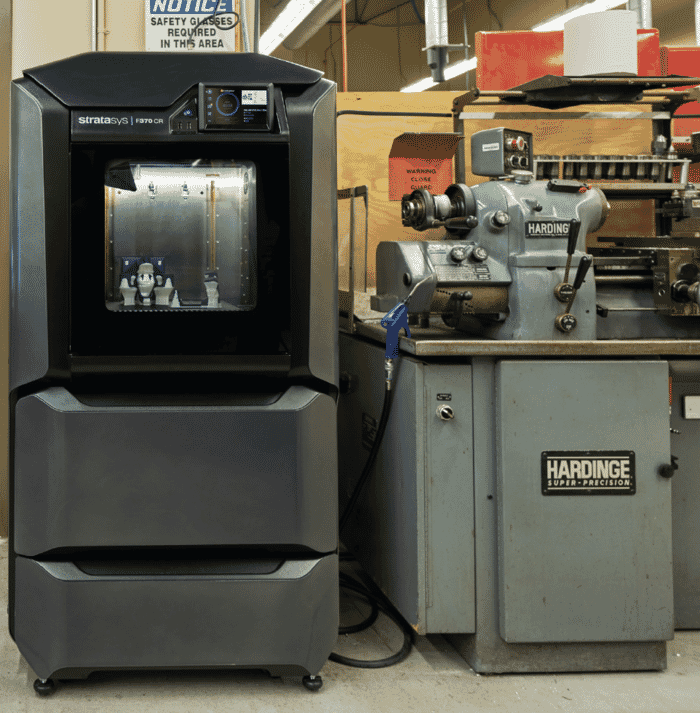

F370CR - high strength composite 3D printer
The F370CR composite printer is built on the same platform as the proven F123 Series, with a verified 99% uptime and a 99% dimensional repeatability performance. Material tuning – optimising print parameters using over 220 measurements – ensures consistent material performance across all resolutions and successful print results.
Built to last
Built-in durability starts with hardened components and print heads to ensure longevity using abrasive composite materials. Sealed filament bays reduce material moisture exposure to maintain stable material mechanical properties, so printed parts meet strength specifications. A fully heated build chamber enables higher strength between layers than other printers in this class that use only a heated build platen.
Easy to operate
You don’t need special training or highly skilled technicians to operate the F370CR. Job setup simply involves importing the part’s CAD file using GrabCAD Print™ software and initiating the print. The printer requires no further oversight until the job is done.
The F370CR includes an auto-changeover feature, so you won’t have to interrupt a build to refill material. When a refill is needed, it’s as easy as dropping the canister in place and inserting the filament into the feed slot. The printer takes it from there. Print head changes, if needed, involve only a quick snap-out/snap-in step.
The F370CR offers application versatility by operating with a range of thermoplastic materials. In addition to high-strength composites, the F370CR gives you the flexibility to print with other engineering thermoplastics to cover more use cases. This multi-material capability offers the convenience of printing different jobs in different materials. There’s no need for separate printers dedicated to composite and non-composite materials.
- Build Size: 355 x 254 x 355mm
- Layer Thickness: 0.127mm – 0.508mm (0.005inch – 0.020inch)
- Software Compatibility: GrabCAD Print & Insight
- System Size: 1626 x 864 x 711mm
- Power Requirements: 100-132V/15A or 200–240V/7A. 50/60 Hz
- Material Delivery: 4 material spool bays, 2 for model, 2 for support located in a drawer on the front of the unit
- Accuracy: Parts are produced within an accuracy of +/- .008 in. or +/- .002 in whichever is greater
Your go-to FDM thermoplastic in 10 colours
TPU 92A (Elastomer)
Produce large and complex Elastomer parts
Carbon Fiber Filled ABS With Unique Stiffness & Strength
High-impact engineering thermoplastic
Lubricious non-marring material
ABS - ESD7
ABS thermoplastic with static dissipative properties
Currently there are no case studies assigned. You can view our full range of case studies here.
Leasing 3D Printers
Tri-Tech 3D provide direct rental contracts on our full range of 3D printers, which can include post processing equipment and extended warranty, making your investment into 3D printing both affordable and help plan your annual expenditure.
Funding in the most part, is provided by our sister company Stanford Marsh Finance (a division of the Stanford Marsh Group) or via our numerous strategic finance partners/brokers.
Rates are frequently checked to ensure competitiveness in the market place and you will find our terms highly attractive. With options such as fixed term contracts, step rentals which make payments lower in the earlier years allowing time to grow the use from your new device. Or deferred payment, enabling you to benefit from the technology ahead of when you start paying.
Why lease 3D Printers?..
Not only can leasing be financially beneficial to companies, but it can also give you the ability to remain ahead and current with technology. It also means your entry point to utilisation of a professional 3D printer is far more affordable than you may think – a professional 3D printer from as little as £299 per month, (including a wash system and 12-months support).
Furthermore, if like many companies today you are outsourcing 3D printing via a 3D Print Bureau, you are already spending an amount each month that when converted to a lease, could represents an in-house option at no extra cost (savings possibly). Either talk to one of our team, or send us details of your average spend and we can help provide an ROI report.
In addition to our excellent rates, as an end user dealing directly with one vendor for finance, equipment and after sales care, your rental agreement will provide you with a future flexible upgrade path. We’ve enabled companies to acquire new technology prior to the completion of the minimum rental period, without the usual high termination figure charged by outside finance agencies.
All finance is subject to approval and none of the solutions detailed above are guaranteed to suit all scenarios. What we can promise however, is we will do our utmost to make the finance of your 3D Print solution as affordable and easy as possible.
If you are interested in further information, please contact us.
