Stratasys F770

Accessible large format, industrial scale FDM printing.

Get a Quote

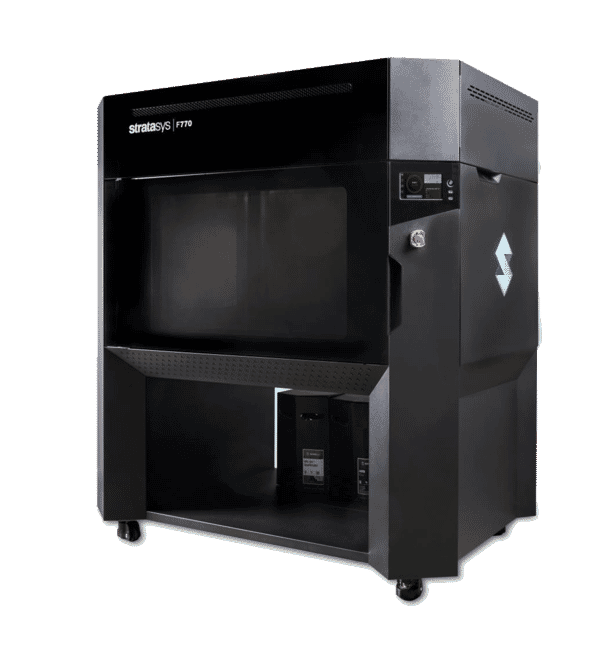

Stratasys F770

The Stratasys F770 makes printing large, complex parts accessible, affordable and easy. Get the accurate print results, reliability, and repeatability that FDM Technology is known for while printing parts up to a meter long in a precision-controlled, heated build chamber.

Soluble Support material allows you to print the parts you want, not the parts you’re limited to by other methods. Complex geometries without the constraints or limitations of printers with inferior support capability.

Performance: With the longest fully heated build chamber on the market, you can print a part that is 46 inches long on the diagonal

Precision: Consistent, repeatable, and accurate parts time after time

Usability: Simple intuitive user interface plus the power of GrabCAD Print Advanced FDM Software for Jig & Fixtures and for those who want more in-depth print adjustment capability, Insight software is also included

Key Uses: Fabrication & Assembly, Prototyping & Production.

3D printing with the F770 is a lights-out, 24/7 operation. There’s no need to constantly monitor the printer while printing and quick-change material canisters are equipped with 200ci of filament, allowing for up to 140 hours of unattended print time. When you want to check progress, the F770’s built-in camera provides continually updated print status that you can monitor from your mobile device.

  • Build Size: 1,000 x 610 x 610 mm / 372,000 cm3 (39.4 x 24 x 24 in. / 22,677 in3)
    Maximum length on the diagonal – 1,171 cm (46.1 in.)
  • Software Compatibility: GrabCAD Print, Insight, Control Center™, MTConnect enabled
  • System Size & Weight: 175 x 124 x 196 cm (69 x 49 x 77 in.) 658 kg (1450 lbs.)
  • Power Requirements: 3 phase, 208V, 30A, 5 wire, 47-63Hz frequency
  • Accuracy: XY part accuracy = +/- 0.254 mm (+/- 0.010 in.) or +/- 0.002 mm/mm (+/- 0.002 in./in.), whichever is greater Z part accuracy = +/- 0.200 mm (+/- 0.008 in.) or +/- 0.002 mm/mm (+/- 0.002 in./in.), plus 1 layer height
  • Operating Conditions: Operating temperature 15 °C to 30 °C (59 °F to 86 °F) Operating Humidity 30-70%
    99 cm (39 in.) clearance on each side of printer
  • ASA

    Your go-to FDM thermoplastic in 10 colours

    Read More
  • ABS-M30

    Affordable FDM production grade thermoplastic

    Read More

Currently there are no case studies assigned. You can view our full range of case studies here.

Leasing 3D Printers

Tri-Tech 3D provide direct rental contracts on our full range of 3D printers, which can include post processing equipment and extended warranty, making your investment into 3D printing both affordable and help plan your annual expenditure.

Funding in the most part, is provided by our sister company Stanford Marsh Finance (a division of the Stanford Marsh Group) or via our numerous strategic finance partners/brokers.

Rates are frequently checked to ensure competitiveness in the market place and you will find our terms highly attractive.  With options such as fixed term contracts, step rentals which make payments lower in the earlier years allowing time to grow the use from your new device.  Or deferred payment, enabling you to benefit from the technology ahead of when you start paying.

Why lease 3D Printers?..

Not only can leasing be financially beneficial to companies, but it can also give you the ability to remain ahead and current with technology. It also means your entry point to utilisation of a professional 3D printer is far more affordable than you may think – a professional 3D printer from as little as £299 per month, (including a wash system and 12-months support).

Furthermore, if like many companies today you are outsourcing 3D printing via a 3D Print Bureau, you are already spending an amount each month that when converted to a lease, could represents an in-house option at no extra cost (savings possibly).  Either talk to one of our team, or send us details of your average spend and we can help provide an ROI report.

In addition to our excellent rates, as an end user dealing directly with one vendor for finance, equipment and after sales care, your rental agreement will provide you with a future flexible upgrade path. We’ve enabled companies to acquire new technology prior to the completion of the minimum rental period, without the usual high termination figure charged by outside finance agencies.

All finance is subject to approval and none of the solutions detailed above are guaranteed to suit all scenarios. What we can promise however, is we will do our utmost to make the finance of your 3D Print solution as affordable and easy as possible.

If you are interested in further information, please contact us.

Stratasys F770 Brochure Downloads
