Stratasys J3 DentaJet 3D Printer
Quality dental 3D printing made compact

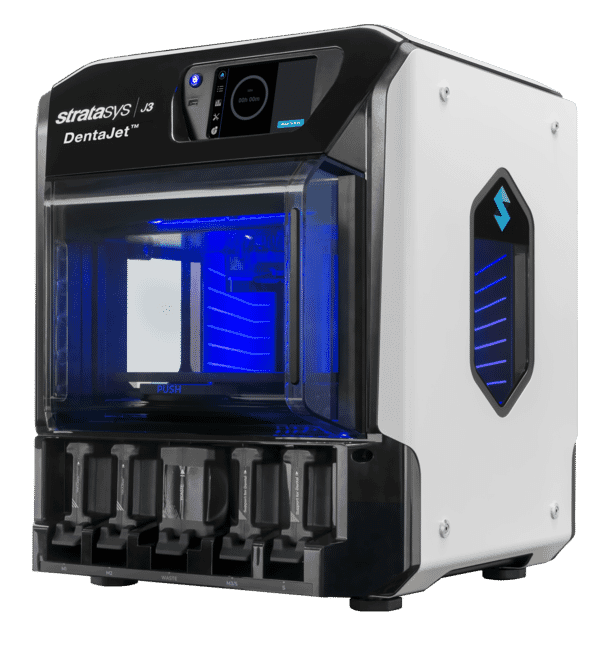

Stratasys J3 DentaJet
The Stratasys J3 DentaJet is a precision-oriented solution that caters specifically to the requirements of small to medium-sized laboratories. It boasts the ability to produce mixed trays comprising three different materials, such as implant models, surgical guides, and gingiva masks, with exceptional accuracy, all within the same tray. This makes the J3 DentaJet an excellent choice for labs of this scale.

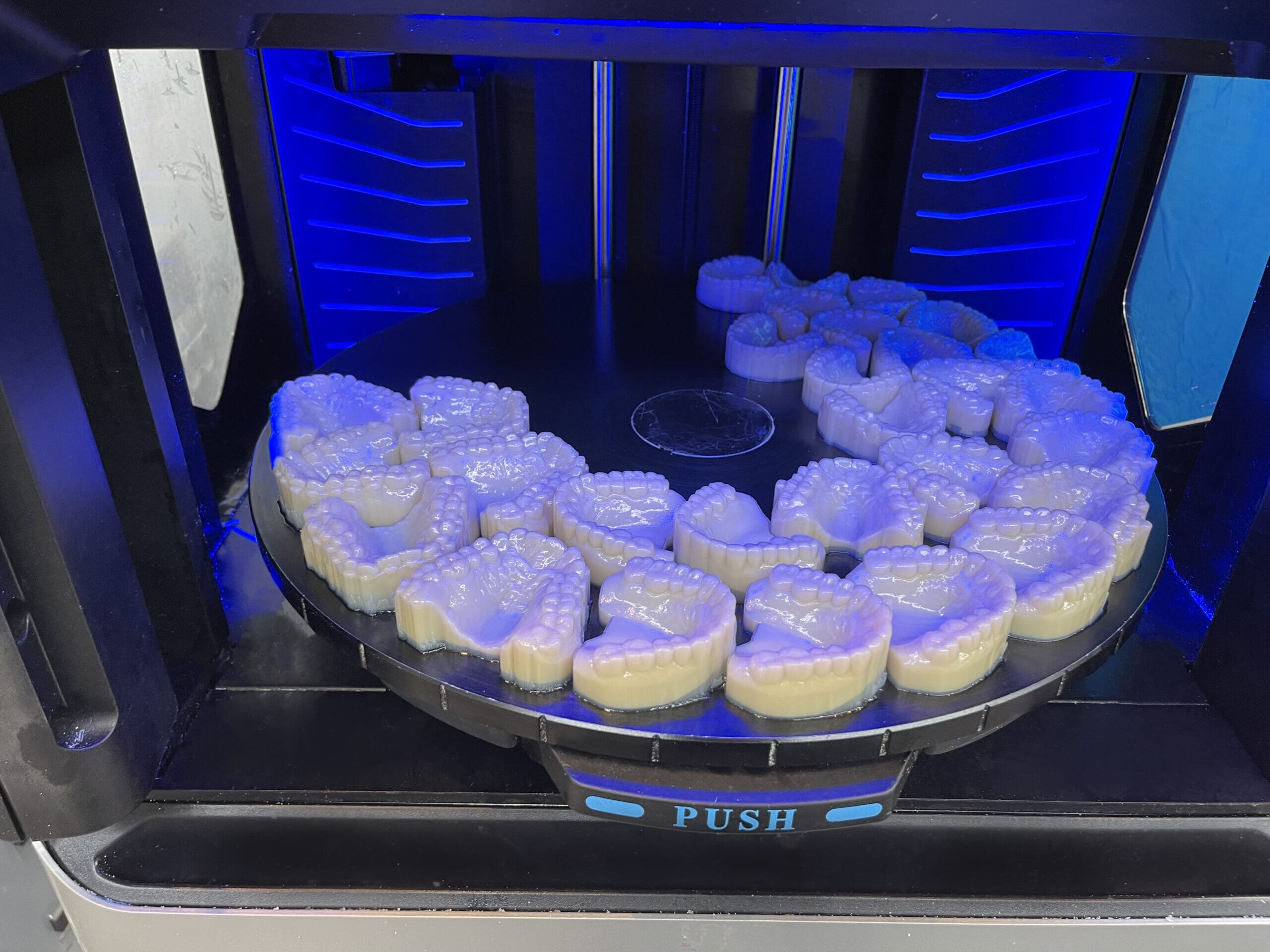

With the Stratasys J3 DentaJet, you can create implant, orthodontic, and removable models, as well as other related applications, with unparalleled accuracy. This cutting-edge technology enables you to handle a wide range of cases with exceptional speed and efficiency. You can even load a tray with a diverse array of prints and let the J3 DentaJet do the work, freeing you up to focus on other tasks.
Stratasys developed a unique portfolio of dental resins that delivers a significant value for each application. The biocompatible resins are developed for printing at production speed while maintaining high accuracy. Resins cure during the printing cycle and do not require additional post-processing.
Flexibility:
Print up to 3 different resins in a single job, produce what you need when you need it.
Key Uses:
Implantology, Removables, Crown & Bridge, RPD Frameworks, Gingiva masks and Orthodontics.
Build Size:
140 x 200 x 190mm
Layer Thickness:
Horizontal build layers down to 18 microns (0.0007 in.)
Software Compatibility:
GrabCAD Print
System Size:
651 x 661 x 774mm
Power Requirements:
100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
Build modes:
High Quality Speed (HQS) – 18.75μm High Quality High Speed (HQHS) – 20.625μm Long Print Mode – 18.75μm (allowing cartridge Hot Swap for selected material)
Regulatory Compliance:
CE, FCC, EAC
Opaque rigid biocompatible dental resin
Transparent rigid biocompatible dental resin

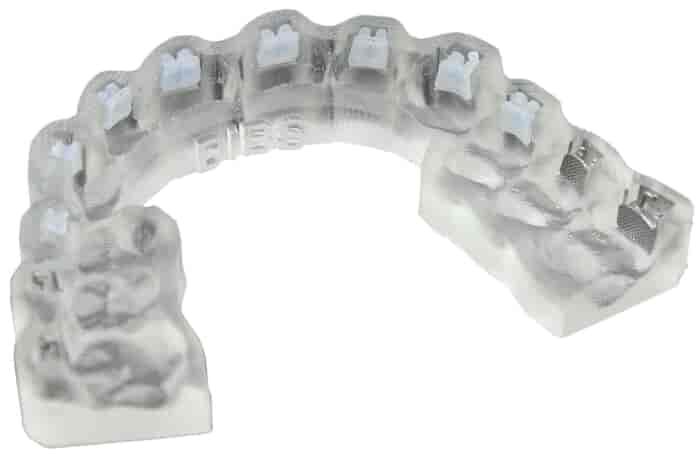

Flexible transparent biocompatible dental resin
Bright white dental modeling resin
Gel-like support material
