XJet Carmel 1400C

Ultimate Ceramic Additive Manufacturing System

Get a Quote

Ultimate Ceramic Additive Manufacturing System

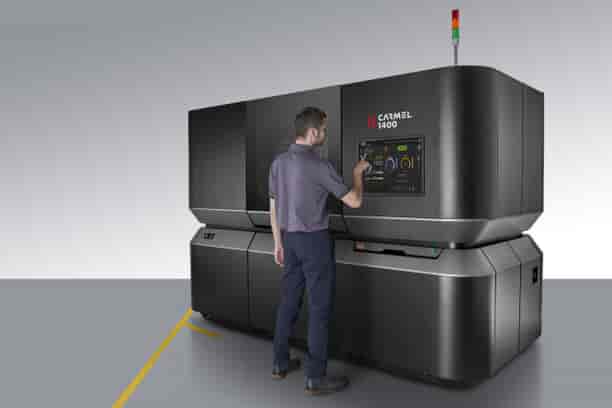

The XJet Carmel 1400C is the industry’s ultimate ceramic AM system for applications requiring high productivity, superior quality and geometric complexity. Already installed and operating at many sites globally, the Carmel 1400C is empowering manufacturers to produce parts of geometric design never before possible.

The state-of-the-art Carmel 1400C system is highly suitable for a wide range of creative ceramic AM applications in diverse industries. Featuring a 1,400 cm² (217 in²) build tray – one of the industry’s largest – the Carmel 1400C enables the simultaneous production of multiple ceramic parts.

XJet Carmel 1400C leverages XJet’s revolutionary NanoParticle Jetting™ (NPJ) technology. This patented inkjet technology enables the production of ceramic AM parts of the highest quality – featuring unprecedented levels of detailing, finish and accuracy – without compromising throughput or build time.


XJet Carmel 1400C

Build Tray: 2 trays. 500 x 140mm

Build Height: 200mm

Software: Autodesk Netfabb

Layer Thickness: 10 microns

Minimum Feature Size: 200 microns

Building Speed: Up to 1mm height per hour

System Dimensions: 310w x 212h x 185d cm

System Weight: 3000kg (3 tonnes)

Required Air Pressure: 6 bar

Electrical Requirements: 400 VAC, 3 phase; 3 x 30A; 50/60 HZ

  • C700 Alumina

    Fine ceramic material with great chemical and physical stability

    Read More
  • C808 Zirconia

    Fine ceramic material with great chemical and physical stability

    Read More
