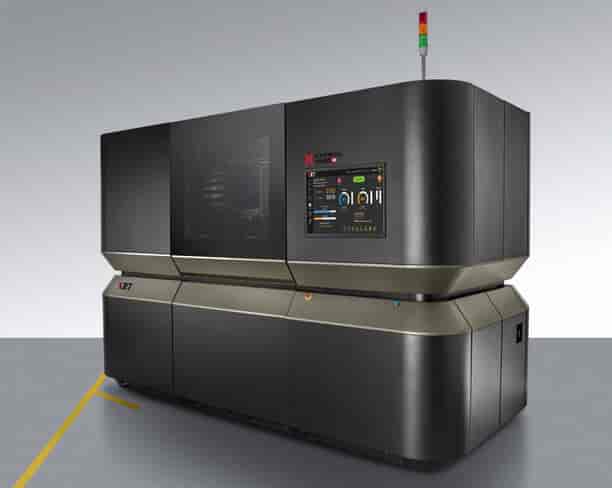

XJet Carmel 1400M

Optimal metal AM system for high quality applications

Get a Quote

Optimal metal AM system for high quality applications

The XJet Carmel 1400M is the industry’s optimal metal AM system for applications requiring unrivalled quality, accuracy and repeatability combined with high productivity. The system enables easy and safe production of high-density metal parts for wide-ranging applications and industries.

Featuring a 1,400 cm² (217 in²) build tray, one of the industry’s largest, the Carmel 1400M enables the simultaneous production of multiple identical or different metal parts at zero cost of geometric complexity. Support structures made of soluble material easily dissolve and reduce labour involvement to a minimum, significantly reducing the need for time-consuming and costly post-processing.

The Carmel 1400M leverages XJet’s revolutionary NanoParticle Jetting™ (NPJ) technology. This patented inkjet technology enables the production of metal AM parts of the highest quality – featuring unprecedented levels of detailing, finish and accuracy – without compromising throughput or build time.

Revolutionary Powderless Technology

  • No hazardous materials using sealed cartridges for safe & simple operation
  • Automated support planning
  • Soluble support material for easy & manual-free support removal
  • Best-in-class part properties

Unprecedented Productivity & Quality

  • Unlimited design flexibility with unrepresented accuracy fine details and surface finish
  • High productivity & repeatability enabling solutions from prototyping to full fledge manufacturing
  • Addressing wide range of applications such as healthcare, aerospace, automotive, telecom and more
View more info

XJet Carmel 1400M

Build Tray: 2 trays, each is mm: 500 x 280 (1,400 cm2) in: 19.7 x 5.5 (217 in2), each

Build Height: 200mm

Building Speed: up to 1mm in height per hour

Layer Thickness: 8 microns

Heat Dissipation: 3 kW (10,240 BTU/hr)

Minimum Feature Size: 300 microns

System Dimensions: cm: 310 w x 212 h x 185 d  in: 122.0 w x 83.5 h x 72.8 d

System Weight: 3000kg (3 tonnes)

Required Air Pressure: 6 bar

Electrical Requirements: EU: 400 VAC; 3 Phases; 3 x 30 A; 50/60 Hz

Surface Roughness: N8-N9

Density: 7.83g/cm3



Currently there are no materials assigned. You can view our full range of materials here.
