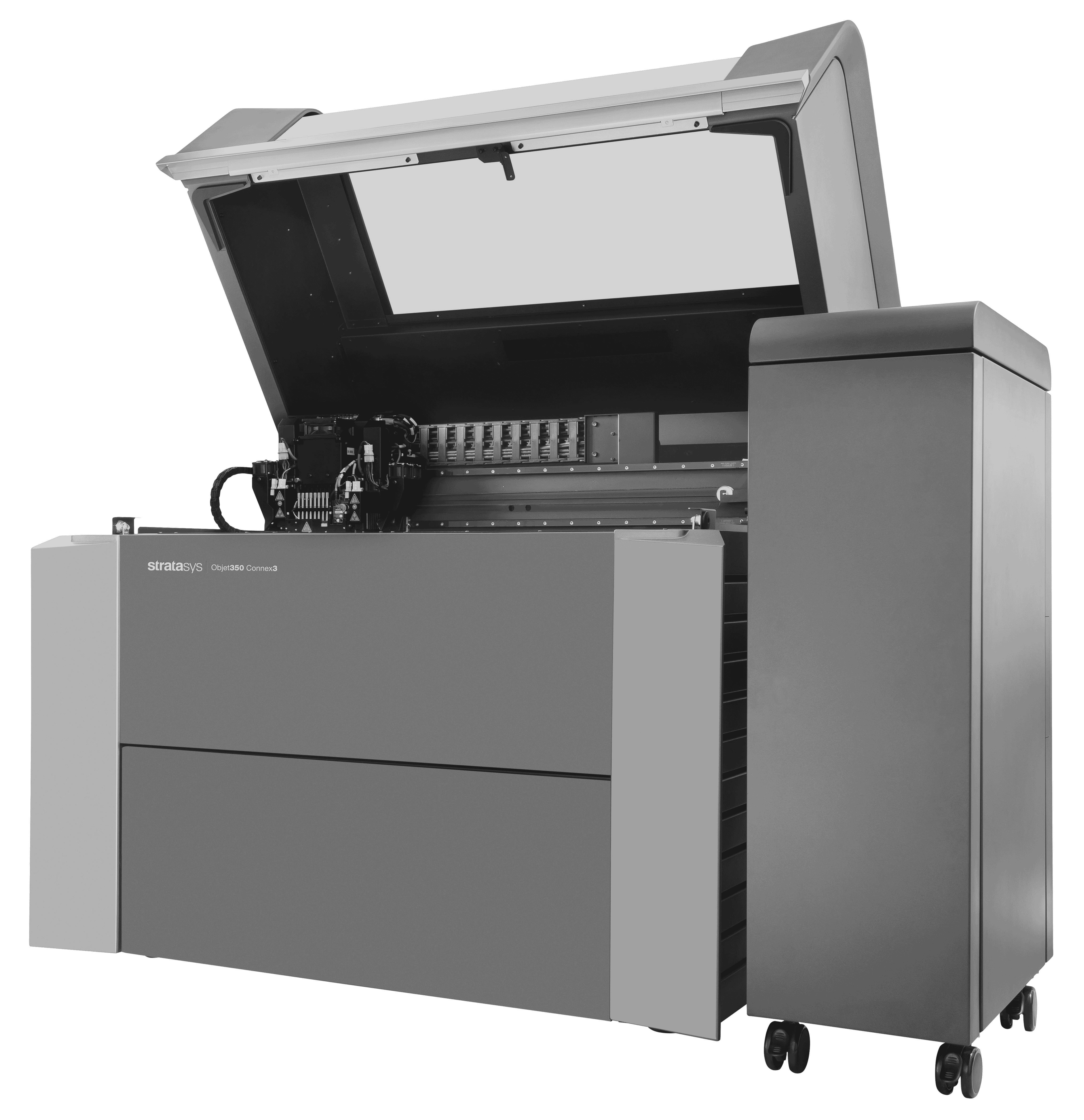

Stratasys Objet 350 Connex3 3D Printer
Brilliant colour 3D Printing
Stratasys Polyjet Objet 350 Connex3

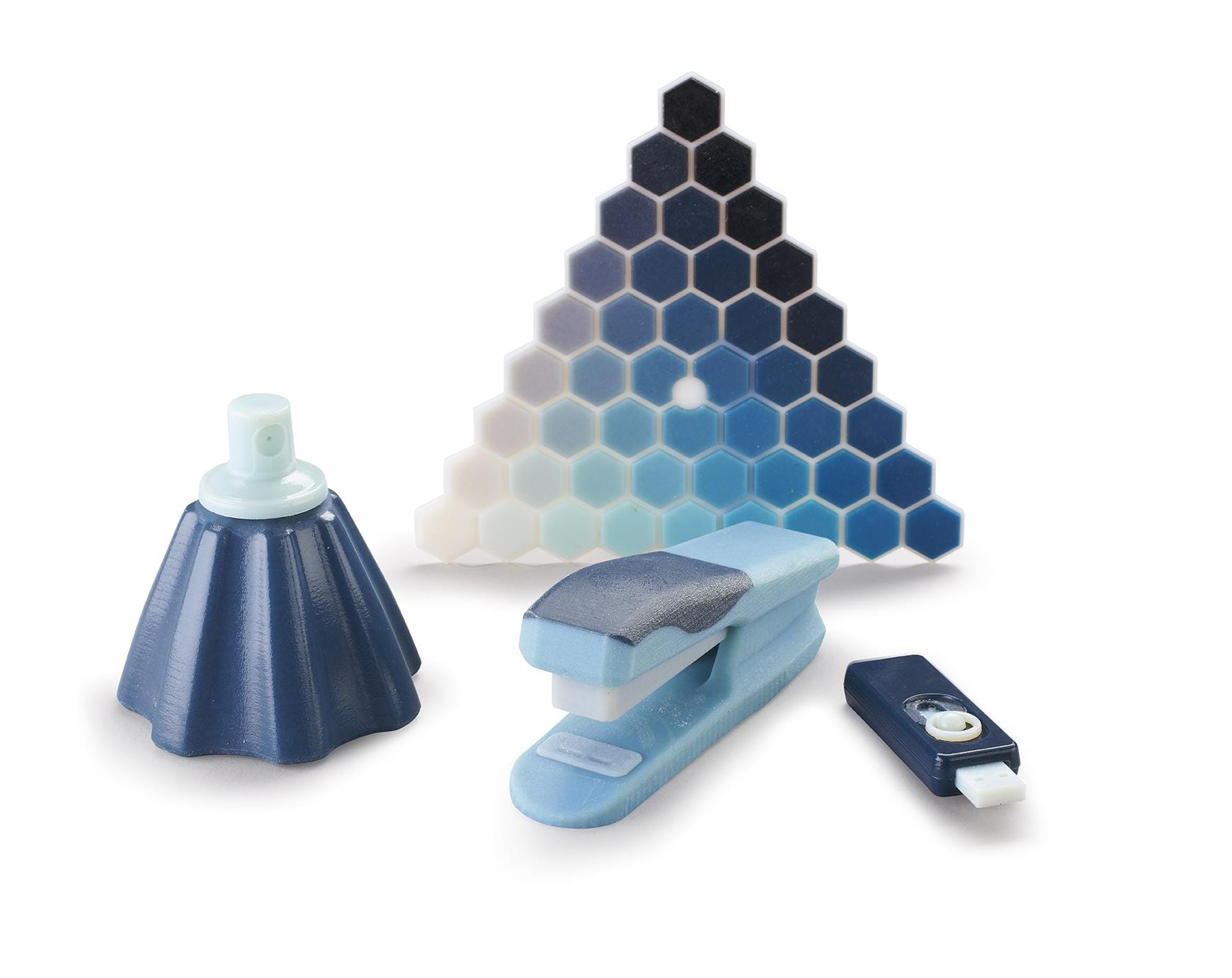

The Stratasys PolyJet Objet350 Connex3 bring agility and aesthetics to every stage of your product development and production. The Connex3 system was the first 3D printer in the world to simultaneously 3D print multiple colours and materials. It continues to lead the field with an even broader range of printing capabilities so you can create parts with the precision, look and feel of real production parts. Connex3 delivers incredible efficiency with the power to serve your diverse needs with one system.nnMultiple materials can be loaded at one time in the Objet 350, enabling you to 3D print parts that require a range of mechanical, optical or thermal properties like non-slip grips, transparent windows or flexible hinges.nnThe Objet 350 allows you to print fast, flexible colours directly from the colour information in your original CAD file. Produce smooth three-colour gradients, vivid multi-colour textures, sleek transparencies or milky opaque colours.
Build Size:
342 x 342 x 200 mm (13.4 x 13.4 x 7.9 in.)
Layer Thickness:
Horizontal build layers as fine as 16 microns (.0006 in.)
Software Compatibility:
GrabCAD Print
System Size:
1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)
Material Cabinet:
330 x 1170 x 640 mm (13 x 46.1 x 26.2 in.); 76 kg (168 lbs.)
Accuracy:
Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm – ±100μ; above100 mm – ±200μ or ± 0.06% of part length, whichever is greater.
Digital ABS Materials
Heat Resistance and Strength
Realistic, Multi-Colour Prototypes in Less Time
Rapidly produce medical and dental models and devices
Rigur
Rigid Transparency
What customers use this for
Why do companies buy a 3D Printer?
That’s a good question and asking it today we think has changed significantly from had it been posed 15-years or so ago. Traditionally a 3D Printer provided solutions to Rapid Prototyping, a functional model to prove fit, form & function, or to convey a design intent to a client (better than a 2D drawing, or even rendered 3D imagery).
And when that was the end requirement, the focus was more on choosing a manufacture who built reliable devices that print right first time and in the professional sector, where repeatable accuracy could be achieved.
