Stratasys J850 & J835
Level up your designs with unrivalled aesthetic results and the ultimate streamlined workflow.
The Stratasys J850 and J835 (more compact version) introduces a revolutionary standard of PolyJet printing, providing a platform to develop new solutions, better products, and inspire research by designers, educators and doctors who use it. The printers speed and capacity gives users more time to iterate and provide more realistic models earlier in the design process, reducing development cycle times and improving communications.
With an expanded material capacity of up to 7 base resins, J850/835 allows access to a colour range of over 500,000 colours, and take advantage of the Pantone matching system in a simple one-click operation. In addition, colour texturing capability gives you access to a variety of realistic patterns such as wood grain, woven composites or even photographs and illustrations, whilst gradients allow a transition of colours that seamlessly blend in to one another.
Additional print modes allow you to adjust the speed and quality of the print to meet your specific needs. For the fastest creation of concept models, use Super High Speed mode with the new DraftGrey material. What’s more, the J Series larger material capacity lets an operator load their most used materials and drastically reduce or even eliminate material changes, saving time and reducing waste.
Discover an even easier transition from design to print with GrabCAD print capability, enabling you to import native CAD files directly so there’s no need to spend time converting them into STL files.
To unlock your ultimate design capabilities, choose the J850/835.
- Build Size: Stratasys J850: 490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)
Stratasys J835: 350 x 350 x 200 mm (13.8 x 13.8 x 7.9 in.)
- Layer Thickness: Horizontal build layers down to 14 microns (0.00055 in.) 55 microns (0.002 in.) in Super High Speed mode
- Software Compatibility: GrabCAD Print
- System Size: System: 1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)
- Material Cabinet: 1119 x 656 x 637 mm (44 x 25.8 x 25.1 in.); 153 kg (337 lbs.)
- Power Requirements: 220–240 VAC, 50–60 Hz, 7 A, 1 phase
- Accuracy: Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm – ±100_; above 100 mm – ±200_ or ± 0.06% of part length, whichever is greater.
Digital MaterialsRead More
Fabricate digital materials with our range of PolyJet 3D Printers
Rubber-like polyjet photopolymers
3D Printing with transparent materials
Rigid OpaqueRead More
Dimensional stability and fine detail
Vero FlexRead More
Flexible photopolymer material
Digital ABSRead More
Simulate production plastics for rapid tooling & prototyping

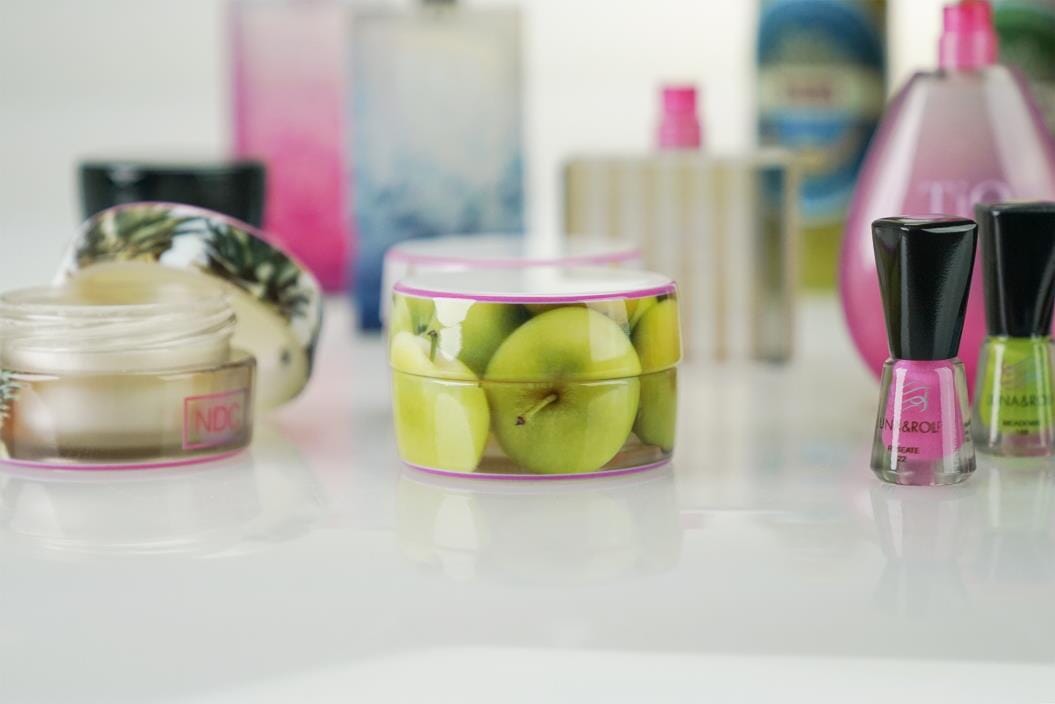

Quadpack enhances packaging design & production with the Stratasys J750
Leasing 3D Printers
Tri-Tech 3D provide direct rental contracts on our full range of 3D printers, which can include post processing equipment and extended warranty, making your investment into 3D printing both affordable and help plan your annual expenditure.
Funding in the most part, is provided by our sister company Stanford Marsh Finance(a division of the Stanford Marsh Group) or via our numerous strategic finance partners/brokers.
Rates are frequently checked to ensure competitiveness in the market place and you will find our terms highly attractive. With options such as fixed term contracts, step rentals which make payments lower in the earlier years allowing time to grow the use from your new device. Or deferred payment, enabling you to benefit from the technology ahead of when you start paying.
Why lease 3D Printers?..
Not only can leasing be financially beneficial to companies, but it can also give you the ability to remain ahead and current with technology. It also means your entry point to utilisation of a professional 3D printer is far more affordable than you may think – a professional 3D printer from as little as £299 per month, (including a wash system and 12-months support).
Furthermore, if like many companies today you are outsourcing 3D printing via a 3D Print Bureau, you are already spending an amount each month that when converted to a lease, could represents an in-house option at no extra cost (savings possibly). Either talk to one of our team, or send us details of your average spend and we can help provide an ROI report.
In addition to our excellent rates, as an end user dealing directly with one vendor for finance, equipment and after sales care, your rental agreement will provide you with a future flexible upgrade path. We’ve enabled companies to acquire new technology prior to the completion of the minimum rental period, without the usual high termination figure charged by outside finance agencies.
All finance is subject to approval and none of the solutions detailed above are guaranteed to suit all scenarios. What we can promise however, is we will do our utmost to make the finance of your 3D Print solution as affordable and easy as possible.
If you are interested in further information, please contact us.
