Stratasys enhances Digital Anatomy Printer with ultra-realistic simulation of bone models

Stratasys Ltd has enhanced its J750 Digital Anatomy 3D printer with advanced bone capabilities that don’t just look real but are actually biomechanically realistic, backed by clinical research. The software upgrade enables the systems to mimic porous bone structures, fibrotic tissue, and ligaments so medical professionals can create models that behave just like human bone.

The Digital Anatomy printer was first introduced a year ago, with an initial focus on mimicking soft cardiology tissues, such as hearts and blood vessels, using powerful Digital Anatomy software and materials like GelMatrix and TissueMatrix. The technology has helped healthcare providers improve surgical preparedness and medical device makers to conduct testing and train medical professionals on new devices. BoneMatrix material with the enhanced software capabilities extends those benefits to orthopedic applications.

Vice President Osnat Philipp, who leads the global healthcare team at Stratasys commented:

We believe that better preparation leads to better clinical outcomes

Despite the high demand for bone models, traditional model options have serious shortcomings. The medical industry has traditionally used human bone from cadavers, or legacy 3D printing solutions, all of which have proven inadequate. Human bone is expensive, difficult to obtain, and hard to acquire with the precise pathology characteristics needed, such as with tumors or reflecting different ages.

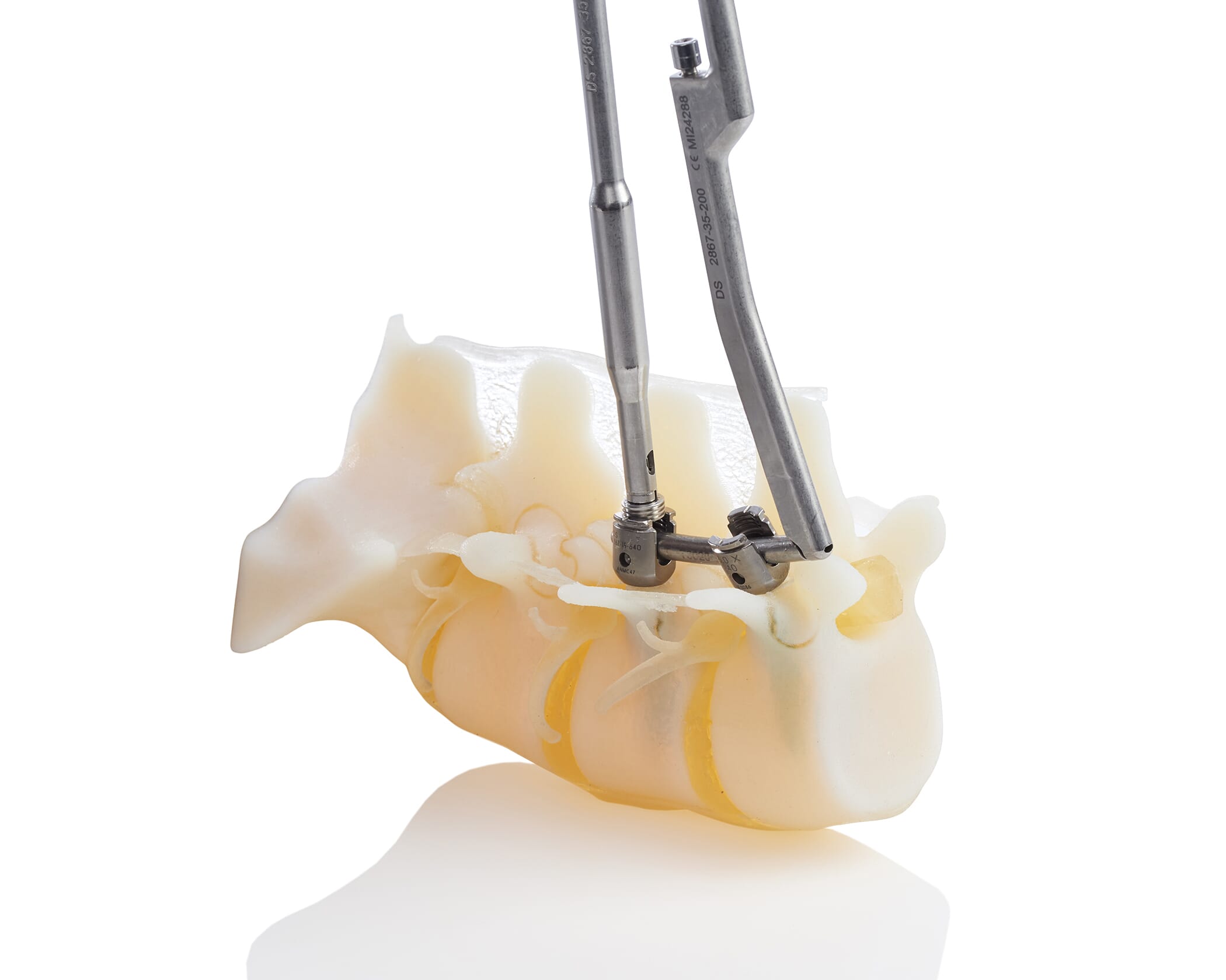

Off-the-shelf manufactured bone models also lack those patient-specific characteristics, and other traditional 3D printing solutions are biomechanically unrealistic. In contrast, whether inserting a screw or drilling or sawing a bone, medical professionals can expect haptic feedback from Digital Anatomy models that is very realistic, and each model can be created from an actual patient scan.

3D-printed skull and spine models for physician training workshops allow doctors to practice cutting and drilling bones, said a medical director at a children’s hospital in Florida. Her focus has been on using state-of-the-art simulation to transform pediatric training and education.

Osnatt commented:

The mechanical properties of bone are so fundamental to the ability of our skeletons to support movement, provide protection for our vital organs and ultimately affect our quality of life. Being able to 3D print models that are biomechanically accurate and unique to each patient is critical to that preparation.

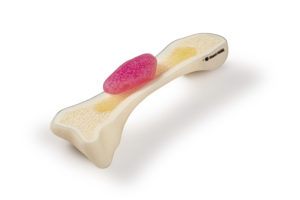

While the 3D printer itself is cutting-edge technology, it’s the Digital Anatomy software that unlocks its power. More than 100 sophisticated presets have been developed and refined through years of expert testing, in partnership with top academic medical centers and hospitals around the world. For example, intervertebral discs can be printed normal or degenerated. The joints between vertebrae can be printed in varying degrees of stiffness. The denser structure of skull bone is differentiated from general bones. Long bones can be printed with varying amounts of marrow. Different combinations of materials are produced at a 3D voxel level to ensure the right biomechanical properties.

Researchers at the Computational Mechanics and Experimental Biomechanics Lab at Tel Aviv University conducted a clinical evaluation of the characteristics of bone models that were 3D printed on the Digital Anatomy system, specifically focusing on how accurately they replicated screw pull-out force and driving torque using cortical and cancellous screws. The 2020 study concluded that orthopedic screws pull-out force in the 3D-printed models had a similar haptic response to human cadaver bone.

A second study conducted this year by researchers at the Technion Institute of Technology’s Materials Science and Engineering Laboratory in Israel demonstrated the mechanical accuracy of 3D-printed spine models compared to cadaver spines. The study was able to demonstrate that the 3D-printed models of lumbar vertebrae accurately represented the range of motion compared to published literature on human spines.
